FEATURES

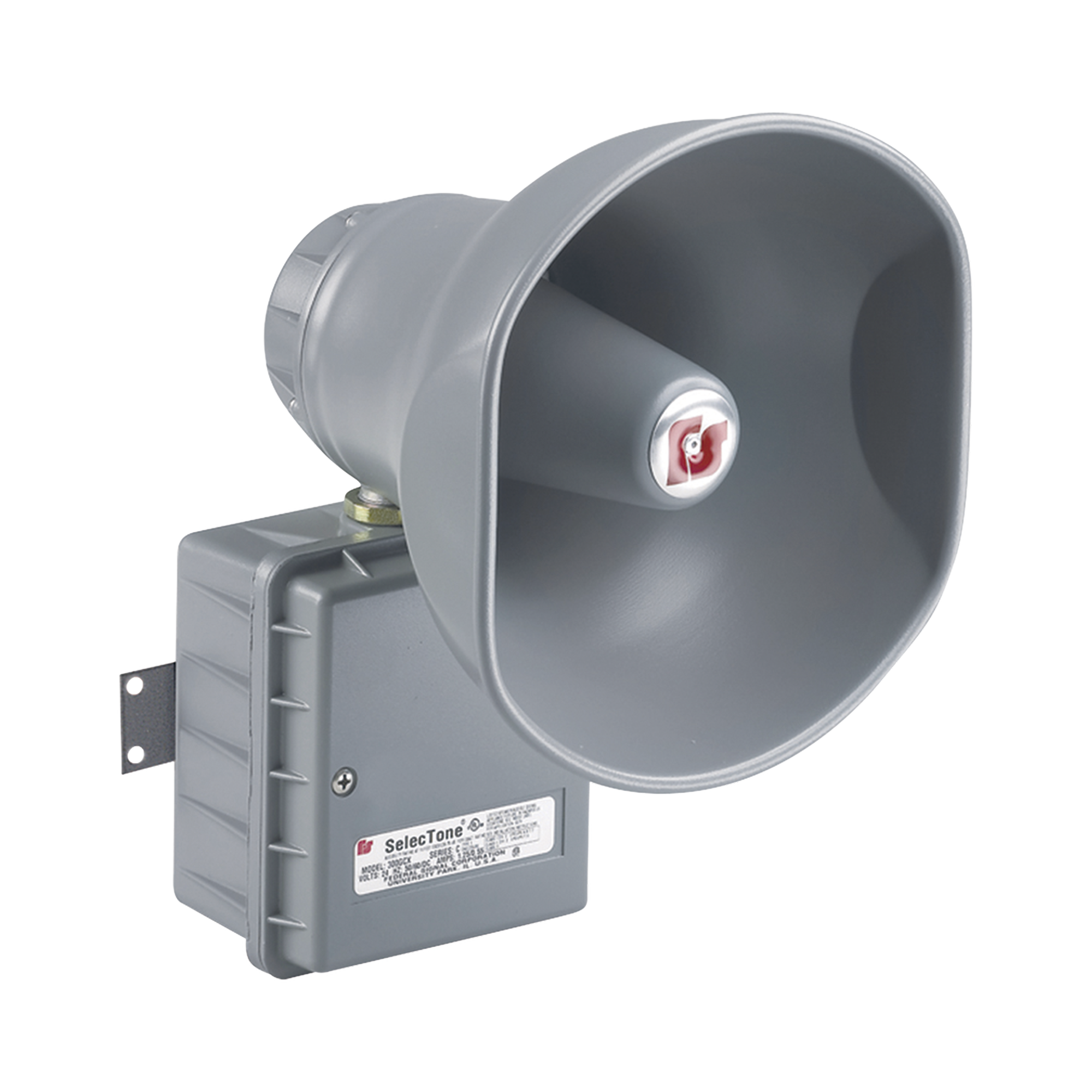

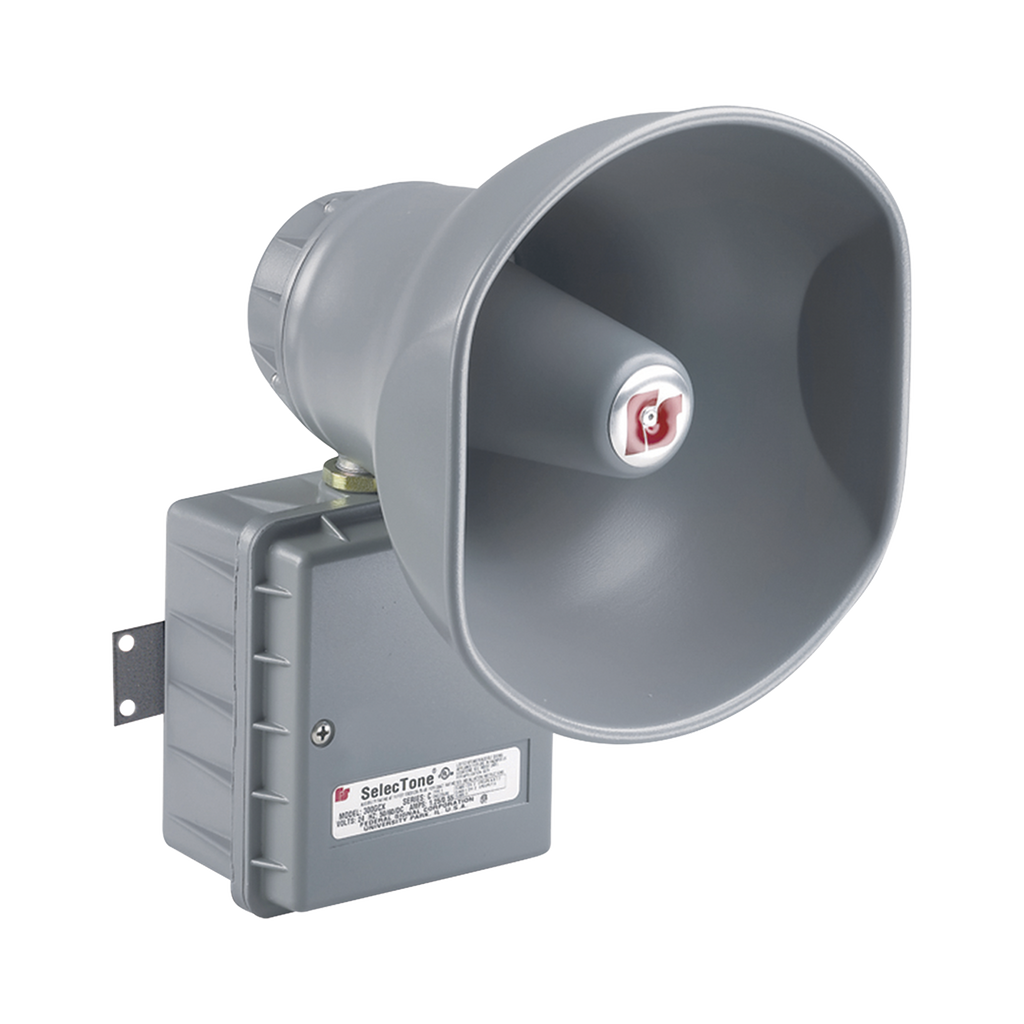

Model 300GCX SelecTone® Amplified Speaker is designed to produce tones, digital voice messages and live public address in harsh environments with high ambient noise levels.
The rugged speaker cone and projector are constructed of spun aluminum. The amplification circuitry, tone module, and gain control are contained in a housing constructed of die-cast aluminum. All surfaces are sealed with powder-coat paint. Dust- and moisture-proof gaskets provide protection from the elements.
SelecTone Amplified Speakers are used individually or as part of a plant-wide emergency notification system. Model UTM Universal Tone Module with 32 tones, or model TM33-SD Custom Tone Module is plugged into a single SelecTone Amplified Speaker for stand-alone use or into a SelecTone Command Unit for plant-wide signaling.
For plant-wide signaling, a Connector Kit is installed into each SelecTone Amplified Speaker and wired to a central controller, SelecTone Command Unit or CommCenter® Digital Message Center. Command Units and CommCenters broadcast tones, voice messages, melodies and live public address to an unlimited number of SelecTone Amplified Speakers.
Applications for SelecTone include emergency warning, evacuation, start/dismissal, public address, and process control signaling.
SPECIFICATIONS
| Voltage | 24VDC |
| | 24VAC 50/60Hz |
| | 120VAC 50/60Hz |
| | 240VAC 50/60Hz |
| Mount | Surface |
| T-Code** | T3, T2C, T6 |
| Operating Current* | 0.67 Amps at 24VDC |
| | 0.90 Amps at 24VAC |
| | 0.20 Amps at 120VAC |
| | 0.10 Amps at 240VAC |
| Operating Temperature Minimum | -67 °F |
| Operating Temperature Maximum | 150 °F |
| Decibel Output | 110 at 10 Feet |
| | 120 at 1 Meter |
| Standby Current | 50 mA at 24VDC |
| | 100 mA at 24VAC |
| | 30 mA at 120VAC |
| | 15mA at 240VAC |
| Enclosure Rating | Type 4X |
| Height | 12.400 in |
| Width | 7.900 in |
| Depth | 8.500 in |
| Net Weight | 5.50 lb |
| Shipping Weight | 6.70 lb |
