FEATURES

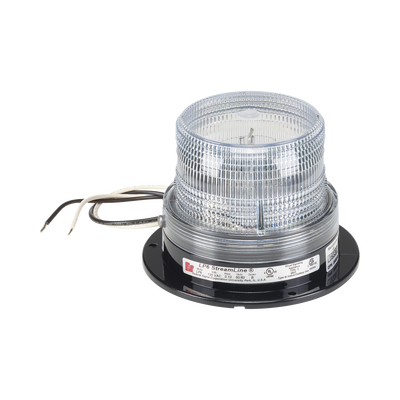

Model LP6 is a very compact, high power strobe light designed for applications where space is critical. At 3-5/8' high, this strobe light is ideal for forklift applications where head room is important. The LP6 also mounts easily to small control panels.
The LP6 features a two joule power supply that works in multiple voltages from 12-48VDC to 120VAC. Modular construction incorporates a powerful flash tube and vibration resistant circuit board.
The LP6 housing utilizes a unique screw-on lens for easy relamping and service. This economical light does not sacrifice power for price or size.
SPECIFICATIONS
| Mount |
Surface |
| Voltage |
12-48VDC |
| |
120VAC |
| Operating Current |
0.44-0.10 Amps from 12-48VDC |
| |
0.10 Amps at 120VAC |
| Light Source/Lamp Style |
Strobe Tube |
| Lamp Life |
7,000 Hours |
| Factory Default Setting |
65 to 95 |
| Peak Candela |
175,000 |
| Effective Candela |
51.5 |
| Operating Temperature Minimum |
-31 °F |
| Operating Current |
150 °F |
| Enclosure Rating |
Type 4X |
| Dome Colors |
Amber |
| |
Blue |
| |
Clear |
| |
Green |
| |
Red |
| Net Weight |
0.65 lb |
| Shipping Weight |
0.85 lb |
| Height |
3.630 in |
| Diameter |
5.060 in |
Características Clave
- Disponible en 12-48Vcd y 120Vca
- Montaje para superficies
- Caja tipo 4X
- Certificación CSA
- Listado por UL y cUL
