FEATURES

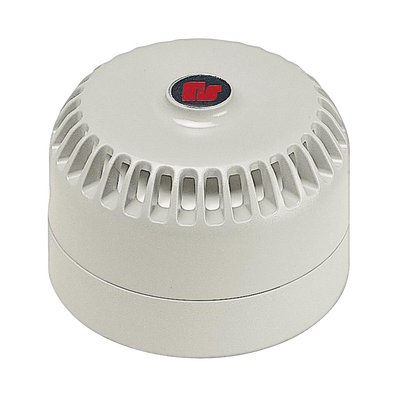

Model LP4 low profile, electronic piezo sounder is a compact multi-tone sounder ideal for OEM and general alarm applications. The low voltage LP4 provides users with the choice of 32 different tones, selectable during installation. Each electrical connection has two terminals for looping in and out, eliminating the need for a separate terminal block, making installation easier. A second tone is available if a third wire is installed and connected to the second tone terminals.
The rugged white ABS housing provides a high degree of strength and protection from the elements.
The shallow base provides for flush mount wiring, and features a unique twist assembly for easy installation. A deep base with knockouts is available as an option.
SPECIFICATIONS
| Voltage |
9-28VDC |
| Mount |
Surface |
| Mount |
Panel |
| Operating Current |
4-33mA |
| Operating Current |
-13 °F |
| Operating Current |
158 °F |
| Decibel Output |
82 to 100 at 10 Feet |
| Decibel Output |
92 to 110 at 1 Meter |
| Tone Output - Balanced Signal Line |
Choice of 28 Tones |
| Ingress Protection (IP) |
IP54 with Standard Shallow Base |
| Impedance |
IP65 with Optional Deep Base |
| Height From Bottom |
3.000 in |
| Diameter |
3.660 in |
| Net Weight |
0.63 lb |
| Shipping Weight |
0.64 lb |
Características Clave
- Funciona con 9-28 Vcd
- Elección de 32 tonos
- Activación remota hasta dos tonos
- Produce 82-100 dBa
- Montaje en panel o pared
- Compatible con PLC
- Cumple con CE
- Caja IP54 (IP65 con base profunda opcional)
