Descripción

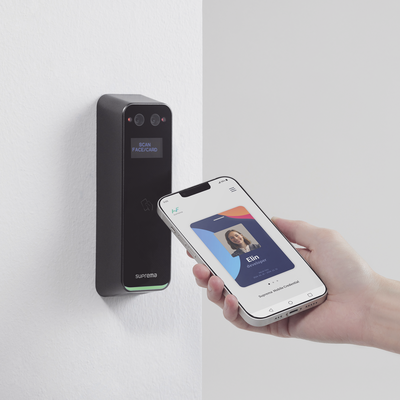

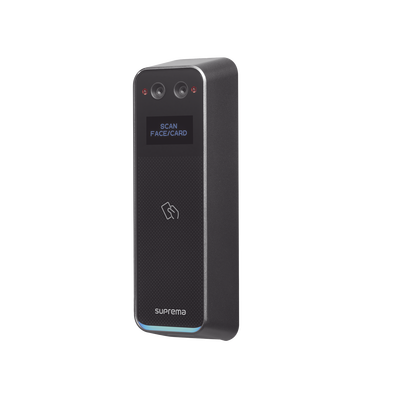

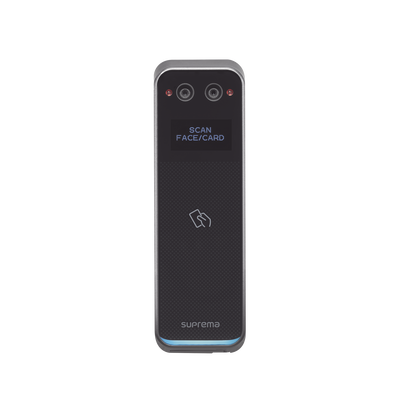

BioEntry W3 es un innovador dispositivo de control de acceso con autenticación facial impulsado por la avanzada tecnología de inteligencia artificial de Suprema. Su procesador de IA, optimizado con aprendizaje profundo (NPU), garantiza una alta precisión y velocidades de procesamiento facial ultrarrápidas. Diseñado para ofrecer durabilidad y resistencia, BioEntry W3 resiste impactos externos y condiciones extremas, manteniendo un perfil delgado y compacto. Experimente el futuro de la seguridad con un dispositivo que prioriza la seguridad de los datos privados, la simplicidad elegante y la durabilidad.
Construccion Durable--------- BioEntry W3 está diseñado para durar. Puede soportar un uso prolongado y condiciones difíciles sin perder su integridad o funcionalidad.
Especificaciones
Credential
Biometrics
RF Option
RF read range 2)
Mobile Card
Protections
IP rating
IK rating
Face
Authentication Distance 3)
Authentication Height
Matching speed
Live Face Detection
Capacity
Max. User
Max. Credential (1:N)
Max. Credential (1:1)
Max. Text Log
Max. Image Log
General
CPU
Memory
Crypto Chip
LCD Type
Camera
LED
Sound
Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
Weight
Dimension (WxHxD, mm)
Certifications
Interface
Ethernet
RS-485
RS-485 Communication Protocol
Wiegand
Input
Relay
USB
USB expansion port
PoE
RTSP
(Real Time Streaming Protocol)Tamper
Electrical
Power
Face
125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV31), FeliCa
MIFARE/DESFire/EM: 50 mm, FeliCa: 30 mm
NFC, BLE
IP67
IK08
0.3 ~ 1.0 m
1.4 ~ 1.9 m
Within 0.2 seconds
Supported
100,0004)
Face: 30,000
Card: 100,000
Face: 30,000
Card: 100,000
1,000,000
10,000
1.5 GHz Quad Core
16 GB Flash + 2 GB RAM
Supported
1.3” PMOLED
IR: 2M pixels
Visual: 2M pixels
Multi-color
16 bit
-20 °C ~ 50 °C
-40 °C ~ 70 °C
0 % ~ 80 %, non-condensing
0 % ~ 90 %, non-condensing
Device: 283 g
Bracket: 36 g
50 x 160 x 34.15 (mm)
CE, UKCA, KC, FCC, IC, RCM, BIS, ANATEL, SIG, RoHS, REACH, WEEE, EAC, TELEC
Supported (10/100 Mbps, auto MDI/MDI-X)
1 ch Master / Slave (Selectable)
OSDP V2 compliant
1 ch Input and 1 ch Output
3 ch Inputs
1 Relay
USB 2.0 (Type C), only FW-Upgrade
Supported
Not supported
Supported
Supported
Voltage: 12 Vdc, Current: Max. 1.0 A
Voltage: 24 Vdc, Current: Max. 0.6 A
Face
125kHz EM, HID Prox & 13.56MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV31), FeliCa, iCLASS SE/SR/Seos
MIFARE/DESFire/EM/iCLASS: 50 mm, FeliCa/HID Prox: 30 mm
NFC, BLE
IP67
IK08
0.3 ~ 1.0 m
1.4 ~ 1.9 m
Within 0.2 seconds
Supported
100,0004)
Face: 30,000
Card: 100,000
Face: 30,000
Card: 100,000
1,000,000
10,000
1.5 GHz Quad Core
16 GB Flash + 2 GB RAM
Supported
1.3” PMOLED
IR: 2M pixels
Visual: 2M pixels
Multi-color
16 bit
-20 °C ~ 50 °C
-40 °C ~ 70 °C
0 % ~ 80 %, non-condensing
0 % ~ 90 %, non-condensing
Device: 291 g
Bracket: 36 g
50 x 160 x 34.15 (mm)
CE, UKCA, KC, FCC, IC, RCM, BIS, ANATEL, SIG, RoHS, REACH, WEEE, EAC, TELEC
Supported (10/100 Mbps, auto MDI/MDI-X)
1 ch Master / Slave (Selectable)
OSDP V2 compliant
1 ch Input and 1 ch Output
3 ch Inputs
1 Relay
USB 2.0 (Type C), only FW-Upgrade
Supported
Supported (IEEE 802.3at compliant)
Supported
Supported
Voltage: 12 Vdc, Current: Max. 1.0 A
Voltage: 24 Vdc, Current: Max. 0.6 A
1)DESFire EV2/EV3 cards are supported by having backward compatibility of DESFire EV1 cards. CSN and smart card functions are compatible with BioEntry W3.
2)RF read range will vary depending on the installation environment.
3)The minimum face authentication distance shown is the default setting for the product, and the recommended face authentication distance is 0.6 to 1.0 m.
4)The number of users registered without having any credential data.
Nota. Fuente recomendable PL12DC3ABK (adicionar Bateria de respaldo) o transformador PS12DC3A
Características Clave
- Autenticación facial con IA y aprendizaje profundo
- Procesador NPU para alta precisión y velocidad
- Diseño compacto y resistente a impactos
- Soporta tarjetas virtuales vía Bluetooth
- Construcción duradera para condiciones extremas
